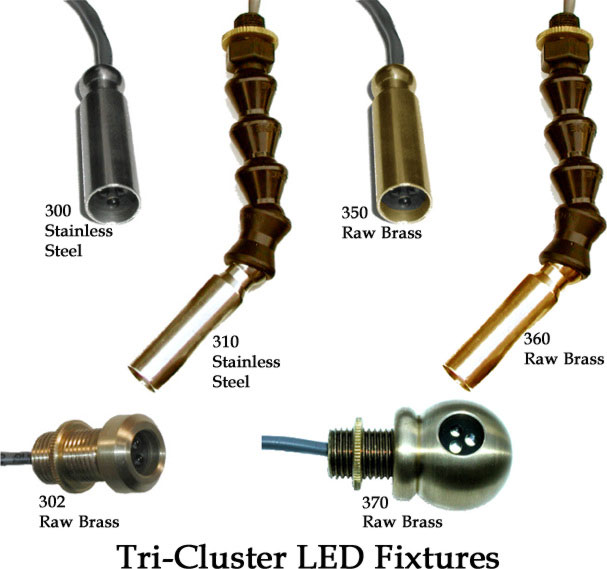

All lights shown below use the same model of Nichia super bright white 3mm LED which
has a very even disbursement of light through its 70 degree beam angle. For Scale reference,
the Tri-Cluster module itself (black rubber disk with three LEDs) has an outside diameter of 7/16".
The Tri-Cluster* draws 20 milli-amps of power (1/4 watts). All of the Tri-Cluster lights are completely
waterproof (LED s and circuit potted in epoxy) and submersible. The 300 and 310 are constructed
of 316 stainless steel and are ideally suited for corrosive environments like salt air and water.
Part Number - Description
300 - Tri-Cluster in S.S. Loc-Line Housing (1/2" dia. X 2" long)
350 - Tri-Cluster in Brass Loc-Line Housing (1/2" dia. X 1 3/4" long)
310 - 300 Tri-Cluster on Loc-Line stalk (1/8" NPT male end with brass nut)
360 - 350 Tri-Cluster on Loc-Line stalk (1/8" NPT male end with brass nut)
302 - Tri-Cluster in Brass "Bolt" (1" long 1/4" IPS with nut - 9/16" OD thread)
370 - Tri-Cluster @ 90 Deg. in solid brass ball ( ball - 1 1/8" diameter; 3/4" long 1/4" IPS nipple with nut)
Linked part numbers (Blue) have more images and information available by clicking on them
9star series:
Parts & Accessories:
31 - Silicone diffusing lens
30 - Garden Stake ( fits 1/8" NPT fitting on Loc-Line Stalks)
36 - Brass Base Mount ( 3 hole flange base for 302 and 370 fixtures)
37 - Brass Coupling 1/4" IPS ( use for extension along with additional 1/4" nipple on 302 & 370)
38 - Brass Nipple 1/4" IPS X 1" long
MicroStar TM (single LED relative of the Tri-Clusters)
Note on beam angle and target of illumination.
Wiring suggestions and considerations
Contact forWholesale & OEM inquiries
* Tri-Cluster - patent pending
