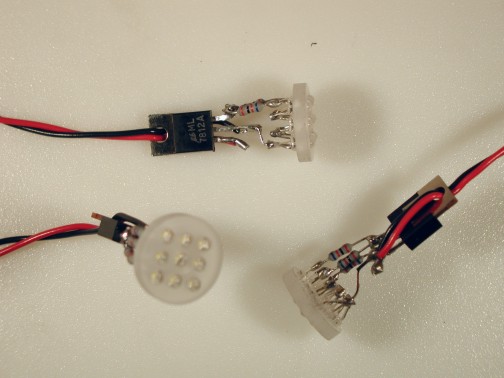

9 LED Cluster - 3 groups of 3 ea. with 12 Volt regulator
9 LED Cluster - 3 groups of 3 ea. with 12 Volt regulator
At 13 volts, less than 1 watt current draw

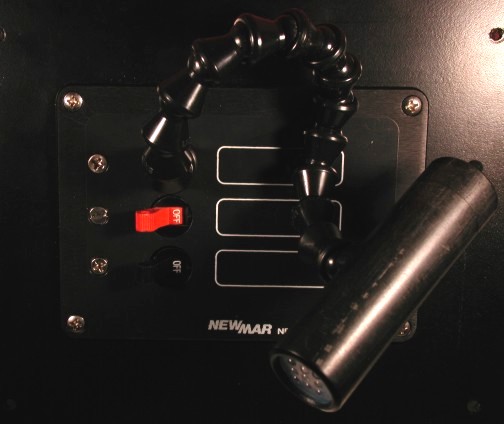

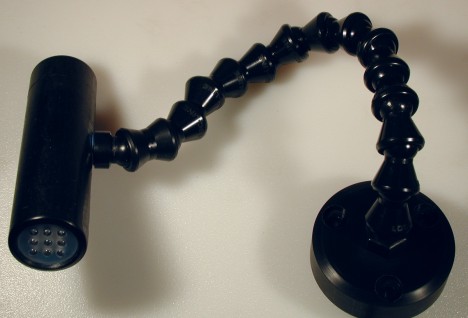

Prototype displayed above and below is same fixture; Using adapter
washer to mount
in 5/8" hole in panel (above) and mounted to base (below) - Light
has toggle
switch ot top of head

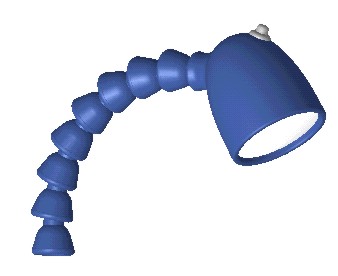

CAD drawing of suggested Light head (adaptable to both LED
and halogen light elements)

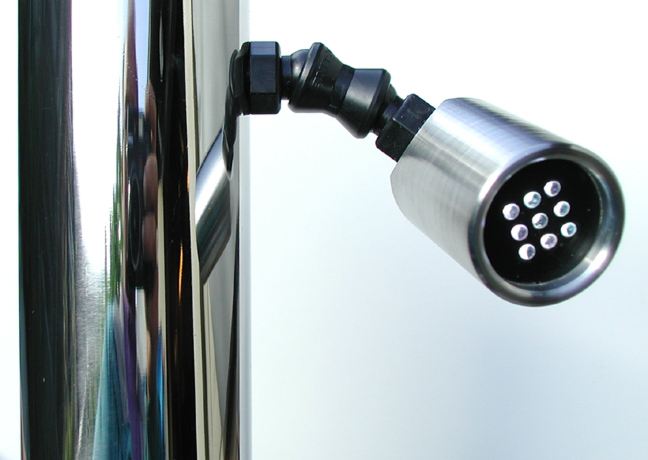

9 element cluster, epoxy potted in stainless housing attached to 2" stainless tube via Loc-Line (Images above and below)

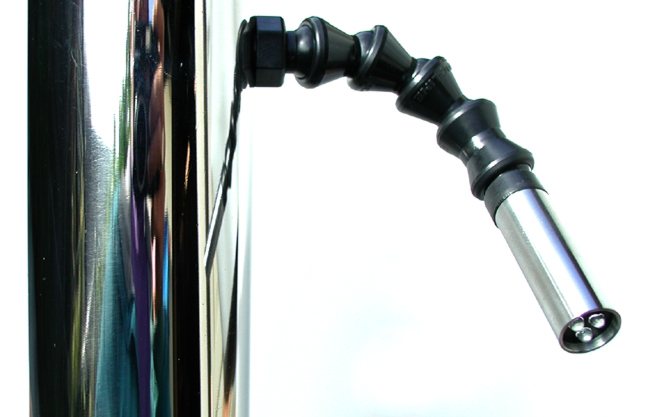

Tri-Cluster LED TM
Note: Due to the circuitry and nature of LEDs, with a 12 volt power source, a single LED requires the same amount of current as a cluster of 3 LEDs. The Tri-Cluster above draws the same 20 mili-amps as a single MicroStar.
